TRX-4 1/10 Sport Traxx Orange

Description

TRX-4 1/10 Sport Traxx Orange

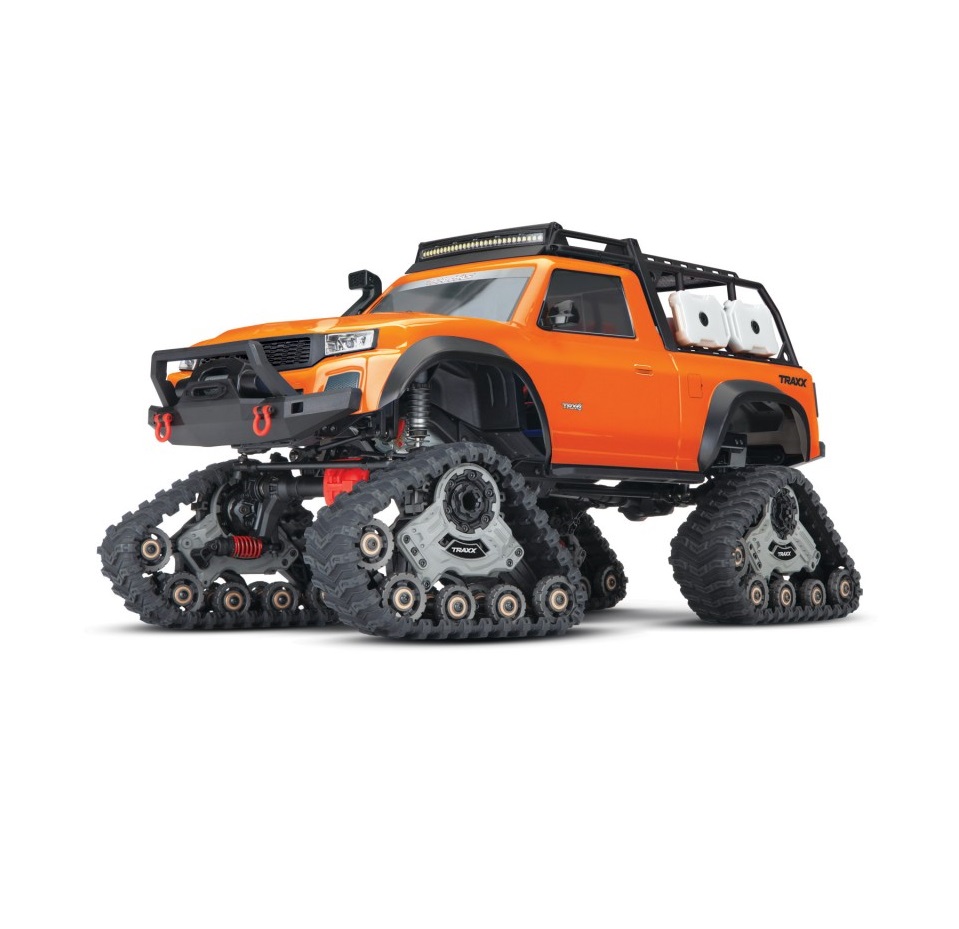

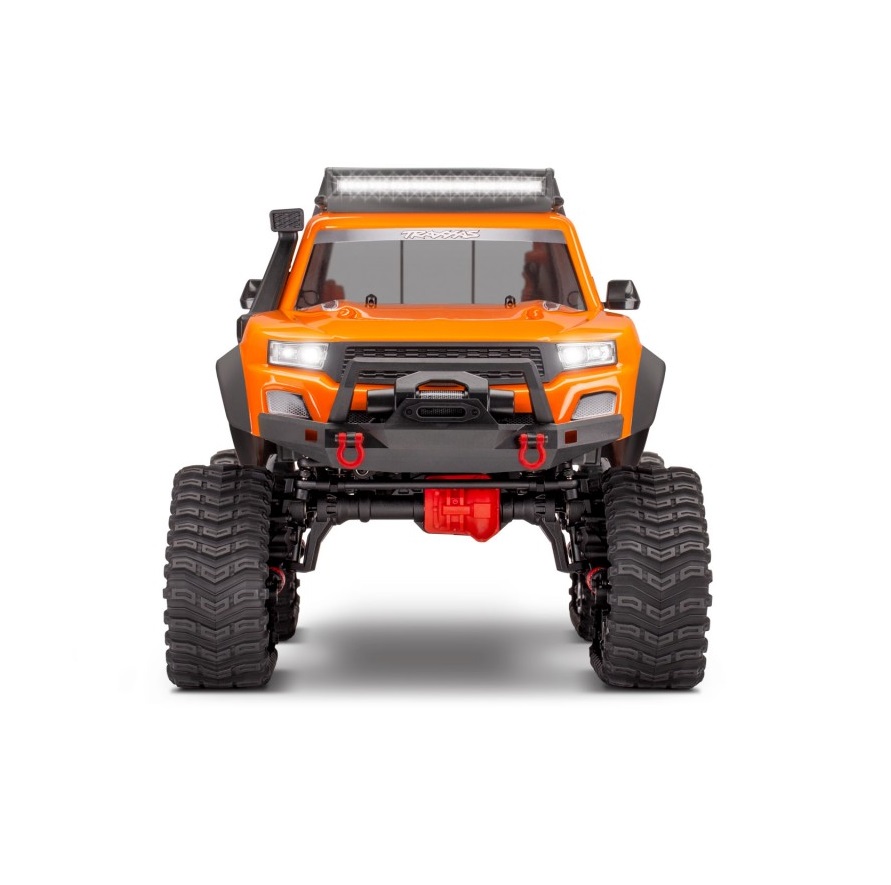

This is the Orange Traxxas TRX-4 with All-Terrain Traxx, a 1/10 Scale 4WD Electric Truck that is Ready-to-Race with the TQ 2.4GHz Radio System, Waterproof Electronics, an XL-5 HV ESC (fwd/rev), and a Titan 550 motor. Hit the trail fully outfitted for fun and adventure!

Get ready to tackle any trail with this take on the TRX-4, equipped with the Traxx All Terrain Track Set. The Traxx Set provides the most significant upgrade to traction for the Traxxas TRX-4 Kits, and this model comes with the set conveniently pre-installed. These treaded tracks are a perfect addition to the TRX-4 and all it’s trail-ready features, allowing the kit to be practically unstoppable on any terrain.

Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model for unbeatable clearance and maneuverability. This kit also comes factory-equipped with powerful lighting, a full array of performance parts and scale detail accessories. A fully-painted body featuring clear windows to enhances the realism is included. The TRX-4 Traxx Edition is specially outfitted for an even higher level of fun and adventure, get out and explore today!

Features:

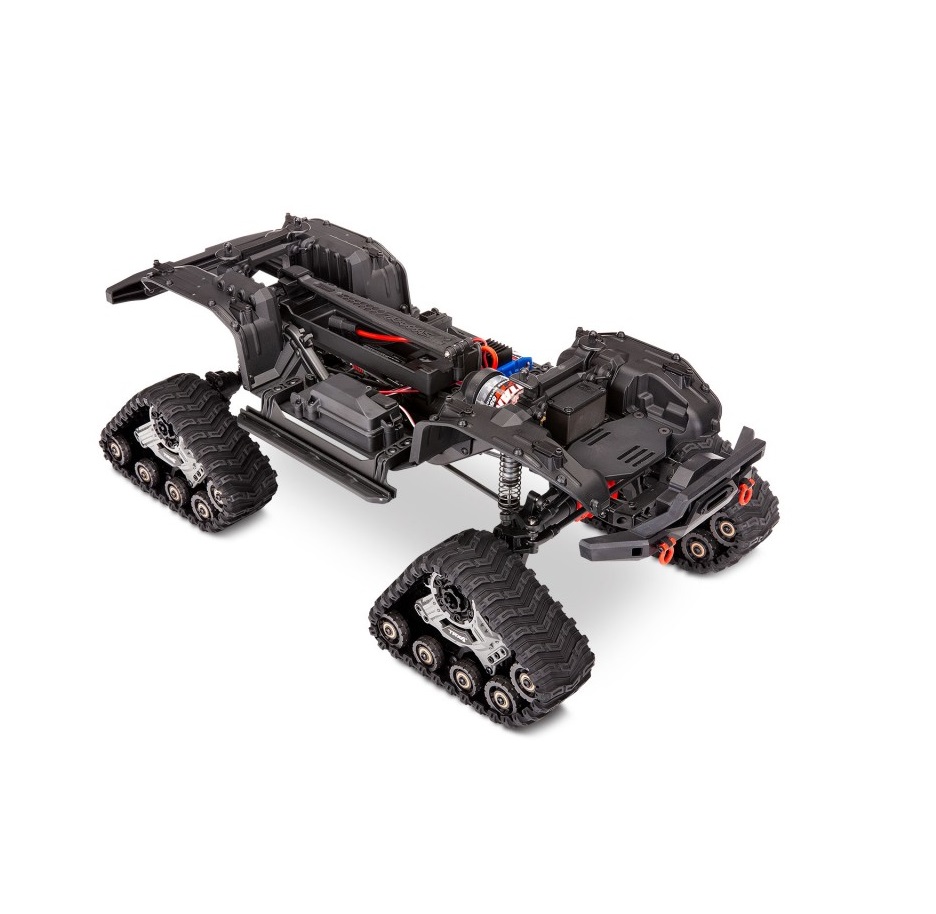

Chassis:

Heavy-Duty Steel Frame Rails
Adjustable Wheelbase
Molded Wire Retainers
Dual-Fit Battery Tray
Inner Fenders and Floor Pans
Aluminum Scale Shocks
Heavy-Duty Steel Links
Precision Hex Hardware

Driveline:

Portal Axles
Torque Twist Eliminated
Locked Differentials
Steel Gear Transmission
Hardened Steel U-Joints
Twin Friction Plate Slipper Clutch
Sealed Ball Bearings

Geometry:

Raised Center Driveshafts and Suspension Links
High Steering and Drag Links
45-Degree Steering Angle
Extreme Approach Angles
High Ground Clearance
Front Motor Design

Electronics:

XL-5 HV ESC
Titan 21T 550 Motor
Waterproof Metal Gear Servo
TQ™ 2-Channel Radio System

Scale Details:

Fully Painted Body with Clear Windows
Expedition Rack and Scale Accessories
Rugged Bumpers
Injection-Molded Inserts

Specifications:

Length: 21.93 inches (557mm)
Front Track: 10.48 inches (266 mm)
Rear Track: 10.48 inches (266 mm)
Ground Clearance: 3.54 inches (90 mm)
Weight: 8.71lbs (3.95 kg)
Height: 10.29 inches (261 mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 76°
Departure Angle: 76°
Breakover Angle: 81°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Battery Tray: 158.75 L x 47 W x 23/26mm H
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519

Includes:

TRX-4, Ready-To-Drive® model
XL-5 HV waterproof electronic speed control
Titan™ 21T reverse rotation motor
TQ™ 2.4GHz radio system
High quality maintenance tools

Needed to Complete:

Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries w/TRX or iD connector
Charger: Traxxas EZ-Peak charger is recommended for easy and fast charging performance
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
