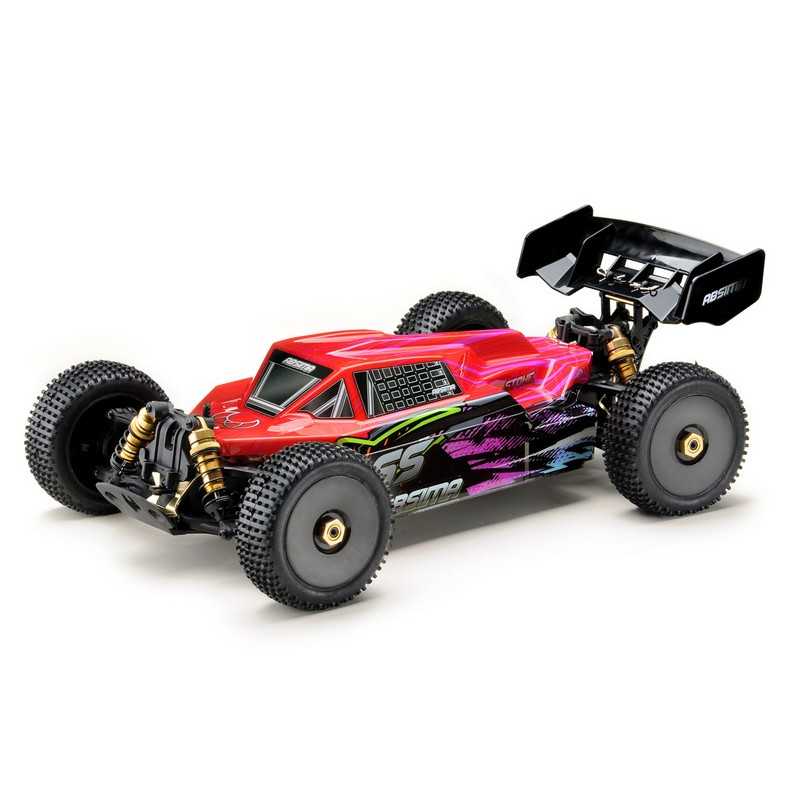

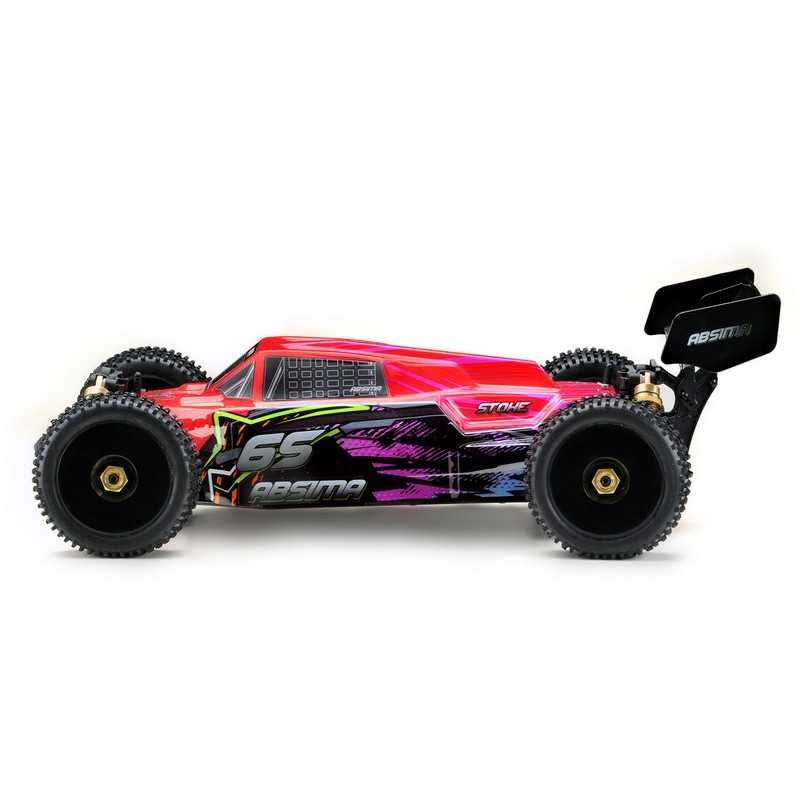

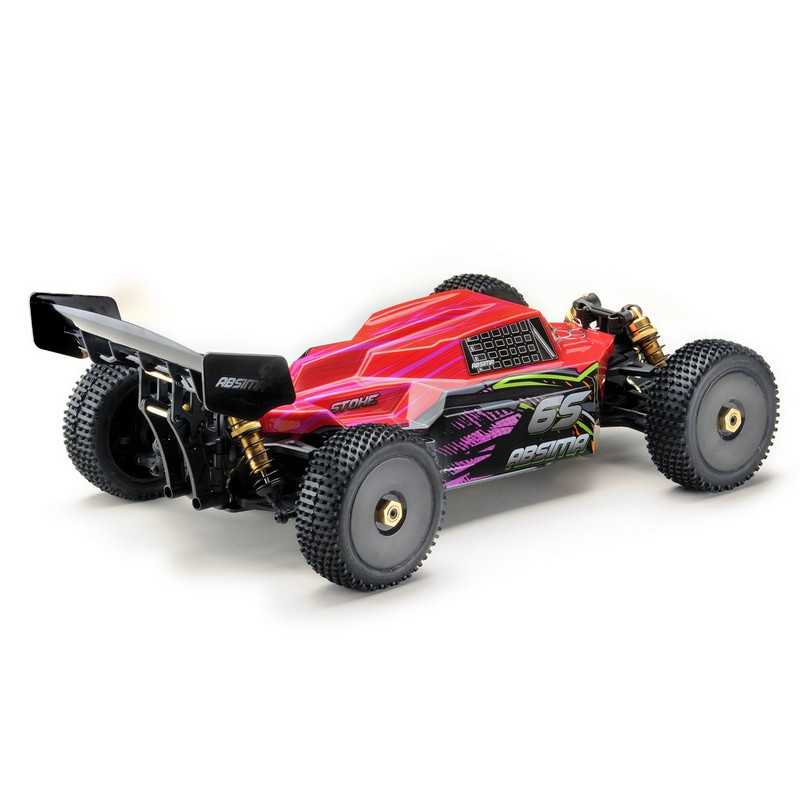

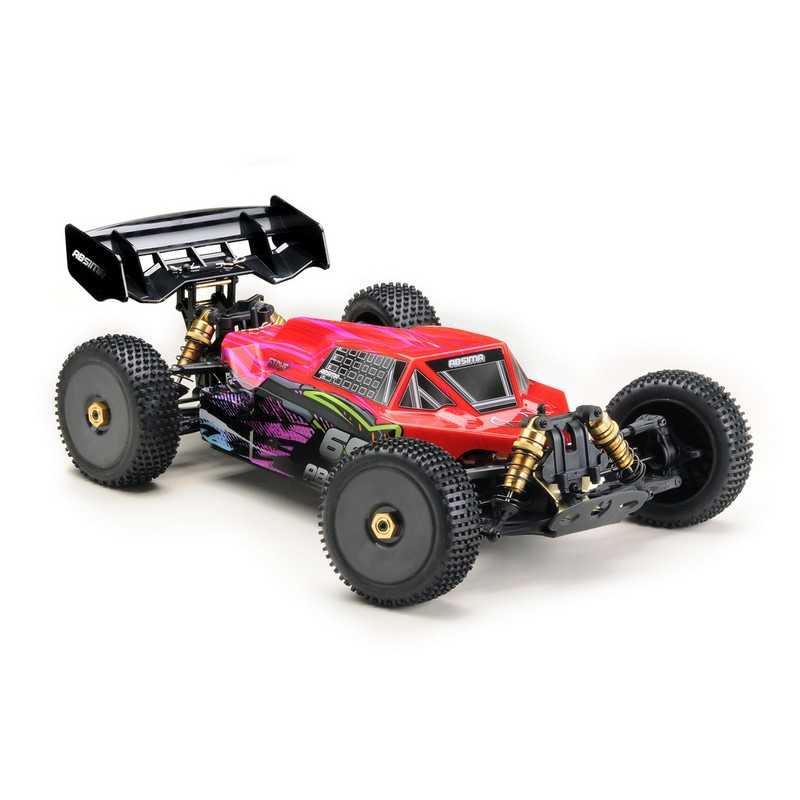

Buggy 1:8 “STOKE Gen2.0” 6S RTR

Description

Buggy 1:8 “STOKE Gen2.0” 6S RTR

DESCRIPTION:

The chassis is fully tunable with adjustable vehicle height, adjustable shock absorbers, adjustable camber, adjustable toe-in, multiple shock absorber attachment points and adjustable rear wing.

Durable aluminum parts such as the 3mm laser-engraved chassis plate, gold-colored wishbone brackets, strut and damper parts ensure a long service life of the chassis and a first-class design.

The driving concept – powered by HOBBYWING – is a leader in its class in terms of performance and reliability and accelerates the vehicle to up to 110 km / h (6S version). The cooling fan of the cruise control keeps the temperatures constant during full throttle. The 2100KV motor delivers plenty of power to the wheels.

The recommendation for the optional high-speed reduction (pinion is included in the scope of delivery) applies to operation on hard, level surfaces. Do not use the pinion when driving off-road, while bashing or during constant start / stop trips, otherwise the drive units (controller / motor) can be damaged!

You can change parameters such as braking force, engine brake, punch, run mode and LiPo switch-off using a set button or a programming box (available separately). XT60 connectors (6S version) ensure a reliable connection between the speed controller and the batteries you have selected.

Front and rear CVD shafts, spur and differential gears and metal dogbones are used for power transmission.

“Easy-use” engine mounting concept for quick and easy removal of the engine. Just open 2 screws and slide it out!

The proven ABSIMA “CR2SV2” 2.4 GHz remote control guarantees a fast and reliable connection to your vehicle. The 9 kg metal gear servo with aluminum horn and durable high-performance tires ensure perfect steering on any surface.

Get your ABSIMA Stoke buggy and experience a whole new level of quality and performance!

Extremely durable composite plastic parts
Fully adjustable chassis concept
Motor pinion and main gear made of hardened steel
Adjustable 16mm ALUMINUM Big Bore shock absorbers
3 differential gears made of solid metal
Downforce spoiler
Adjustable spoiler bracket
2-part, sliding engine mounting concept for easy adjustment and installation
Solid CVD axles – front & rear
Medium steel drive shaft – front & rear
Low-profile tires with racing mix
“Saddle-Pack” battery concept for perfect weight distribution
3mm black aluminum chassis plate with ABSIMA –
Laser engraving aluminum servo horn
Separate water and dustproof receiver box
Fully ball bearing
chassis Side protection
All aluminum parts finished in gold
Aluminum 17mm wheel hexagon driver
Steel threaded rods
Adjustable wheel camber, track and vehicle height
High-Speed
Pinion SPEED: UP TO 110 KM / H are

INCLUDED:

ABSIMA “CR2SV2” 2.4GHz AFHDS remote control (servo reverse and dual rate function; foam steering wheel)
Water-proof 150A HOBBYWING speed controller (BEC: 6V / 4A; programmable functions: LiPo cut-off, running mode, braking force, motor brake, punch)
Powerful 2100KV 4-pole sensorless brushless motor (600W, shaft diameter:: 5mm, module 1)
9kg / metal gear steering servo (25T) with aluminum servo horn

TECHNICAL DATA:

Scale: 1: 8
drive type :: 4WD
Surface: Off-road
wheelbase :: 345mm
ground clearance: 35mm
wheel width: 43mm
tire diameter:: 115mm
Motor gear made of steel: sprocket: 13T / main gear: 49T
sprocket module: 1.0
length: 535mm
width: 310mm
height: 175mm
weight: 3150g (without batteries)

REQUIRED:

2x 11.1V LiPo batteries with XT60 connector
Suitable charger
LiPo charging bag
Optional programming box (# ABS-2110041)
4x AA batteries
